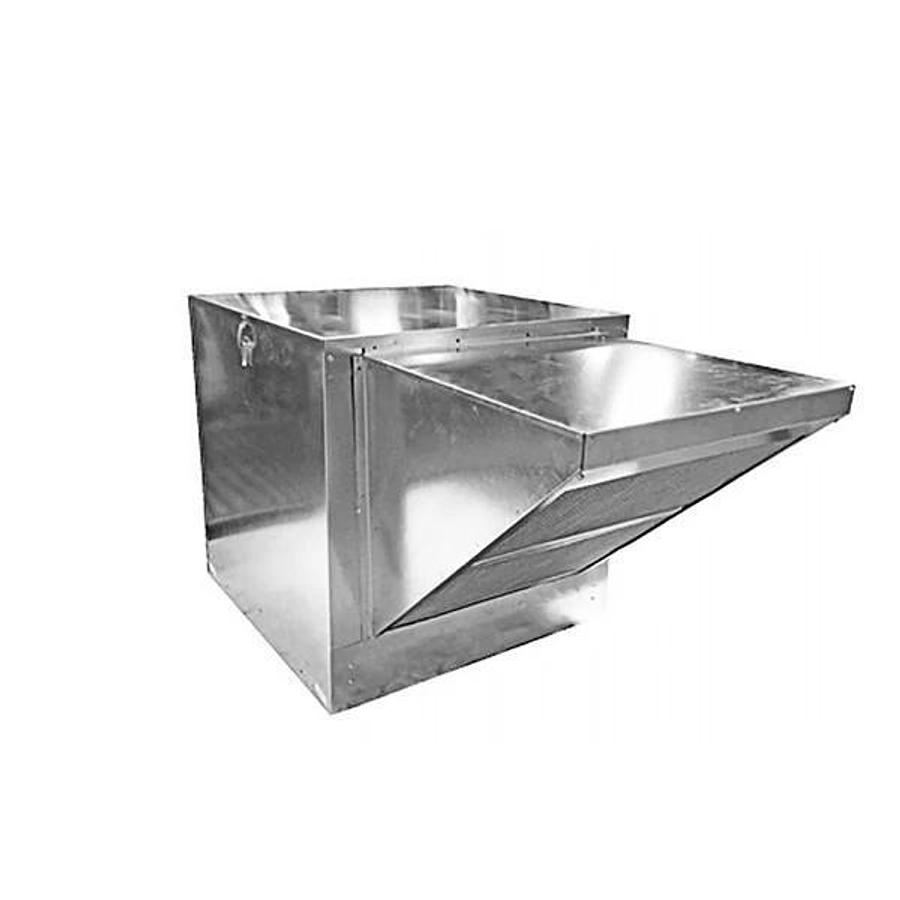

New Carnes VNBL Make-Up Air Filtered Supply Centrifugal Fan - Complete w/ 90 Degree Uptake

Filtered Air Supply Fan

NEW* CARNES CENTRIFUGAL FILTERED SUPPLY POWER ROOF VENTILATORS MODELS VNBL - BELT DRIVE w/ SUPPORT PANELS.

Roof mounted, belt driven supply fans are available in lineal, louvered, or extreme weather styles. Permanent washable aluminum filters, internal vibration rails, and insulated cover are available.

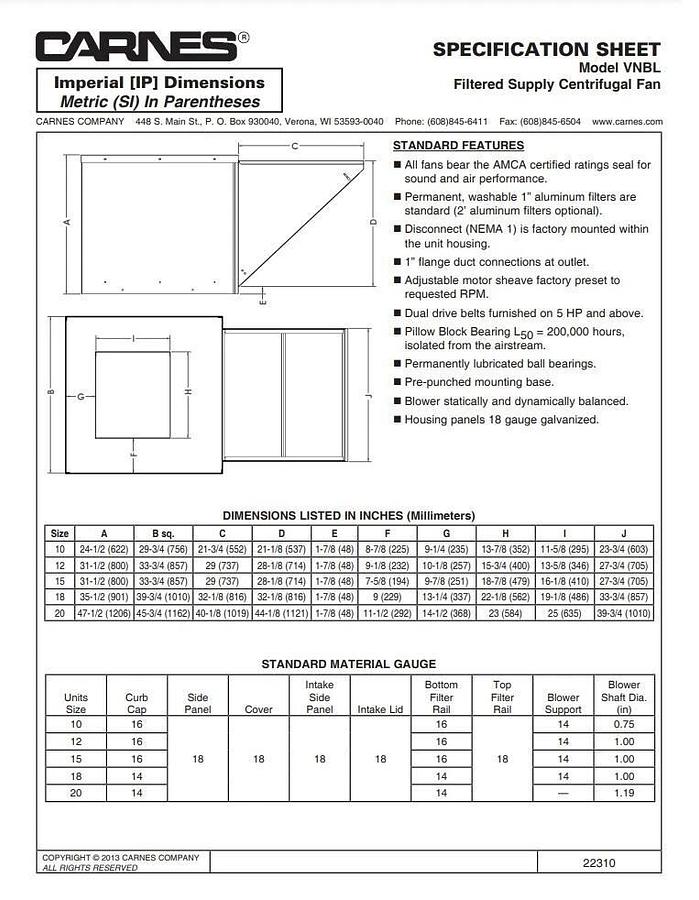

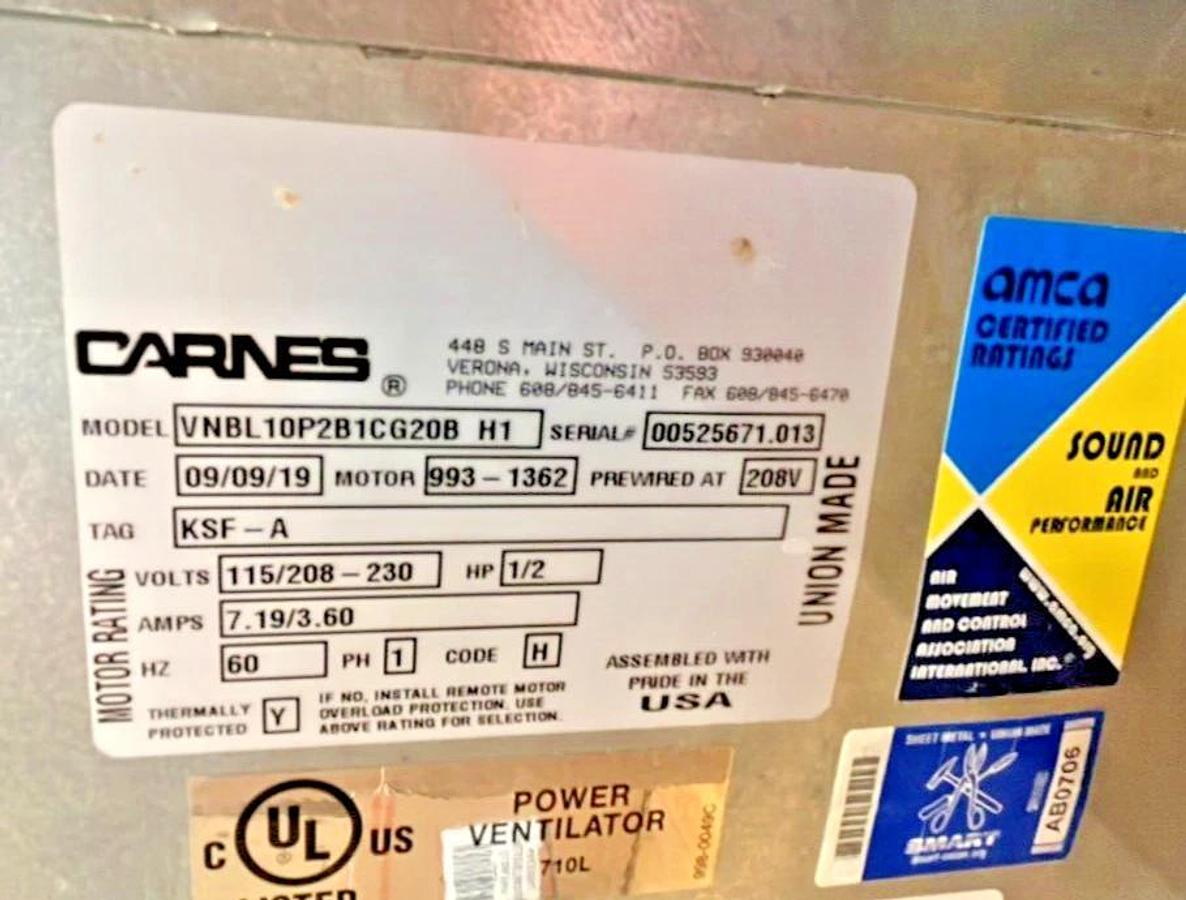

SPECS LISTED IN PHOTOS

* Model VNBL

• Sizes 10-20
• Airflow Capacities from 1000 to 13,000 CFM
• Up to 1.5" wg
•

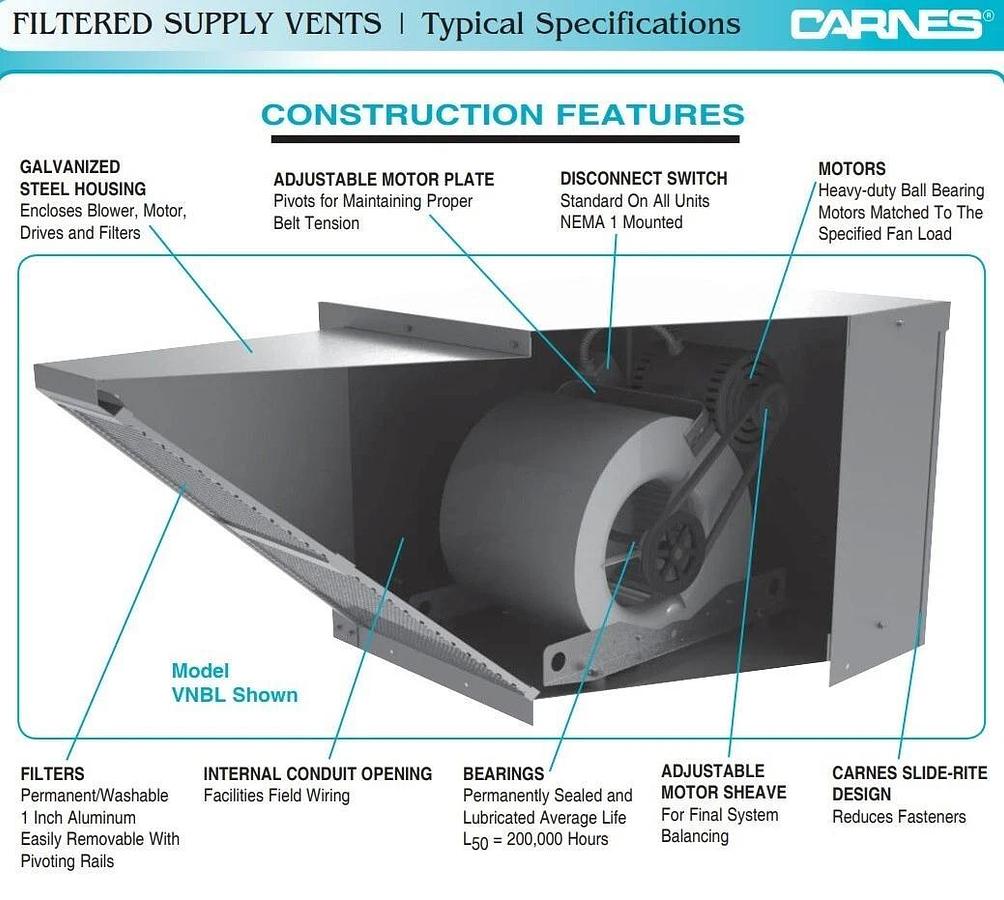

• STANDARD FEATURES:
•  All fans bear the AMCA certified ratings seal for sound and air performance.
•  Permanent, washable 1” aluminum filters are standard (2’ aluminum filters optional).
•  Disconnect (NEMA 1) is factory mounted within the unit housing.
•  1” flange duct connections at outlet.
•  Adjustable motor sheave factory preset to requested RPM.
•  Dual drive belts furnished on 5 HP and above.
•  Pillow Block Bearing L50 = 200,000 hours, isolated from the airstream.
•  Permanently lubricated ball bearings.
•  Pre-punched mounting base.
•  Blower statically and dynamically balanced.
•  Housing panels 18 gauge galvanized.

Customer Pick-Up is Available. Or This Item Will Ship via LTL Common Carrier.
