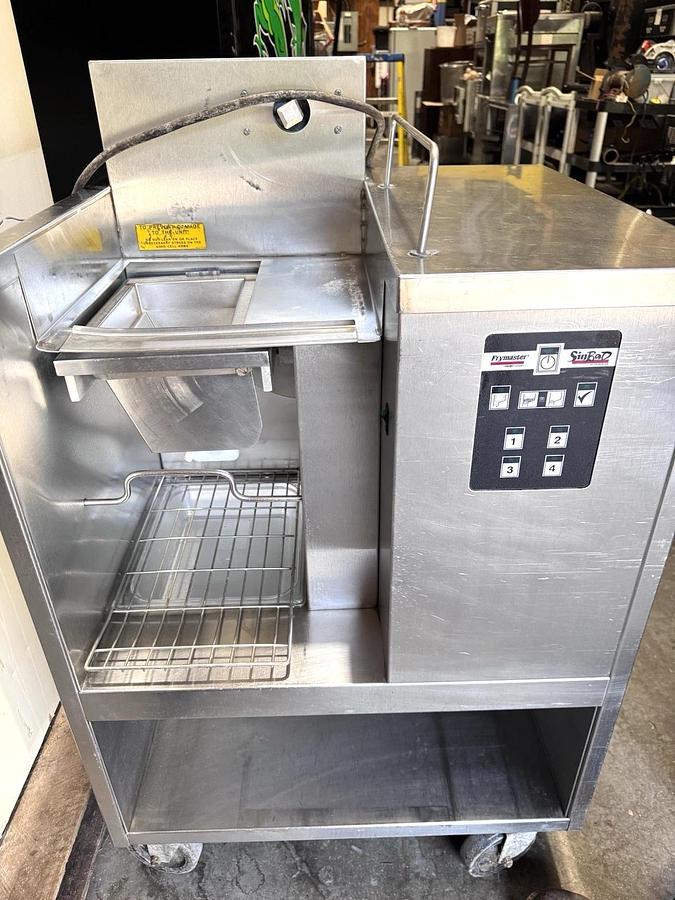

Frymaster SinBaD Automatic Single-Basket French Fry Portion Dispensing System

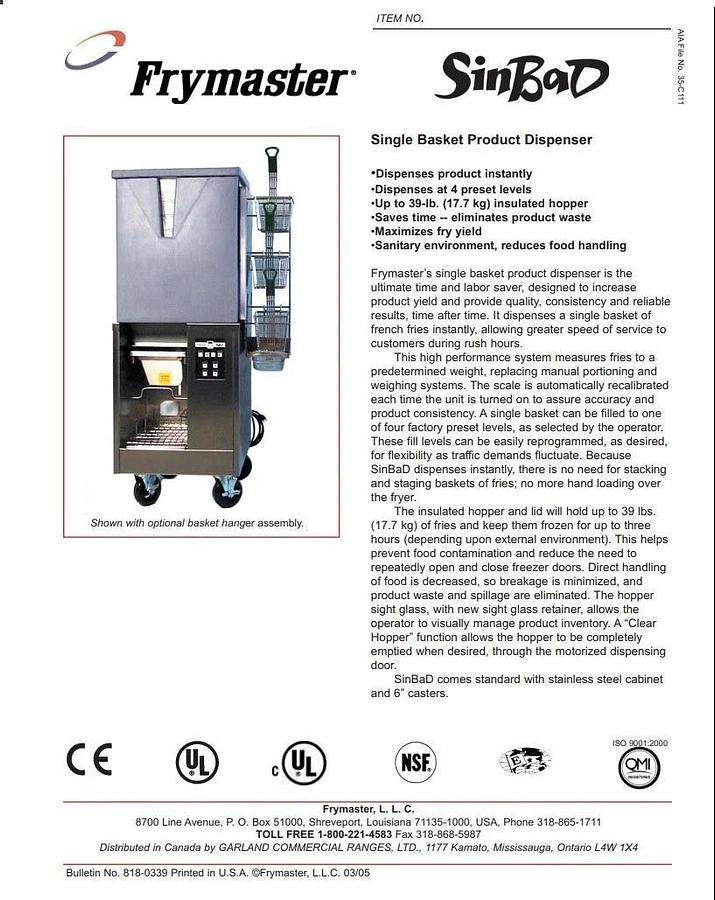

The Frymaster SinBaD Single-Basket French Fry Portion Dispensing System

The Frymaster SinBaD single-basket dispensing system (model BKSBDSS) is an automated French fry station that dispenses a consistent, pre-programmed weight of fries into a fry basket.

Rapid basket refill enables continuous and efficient operation without needing to manually stage full baskets of product.

Key specifications

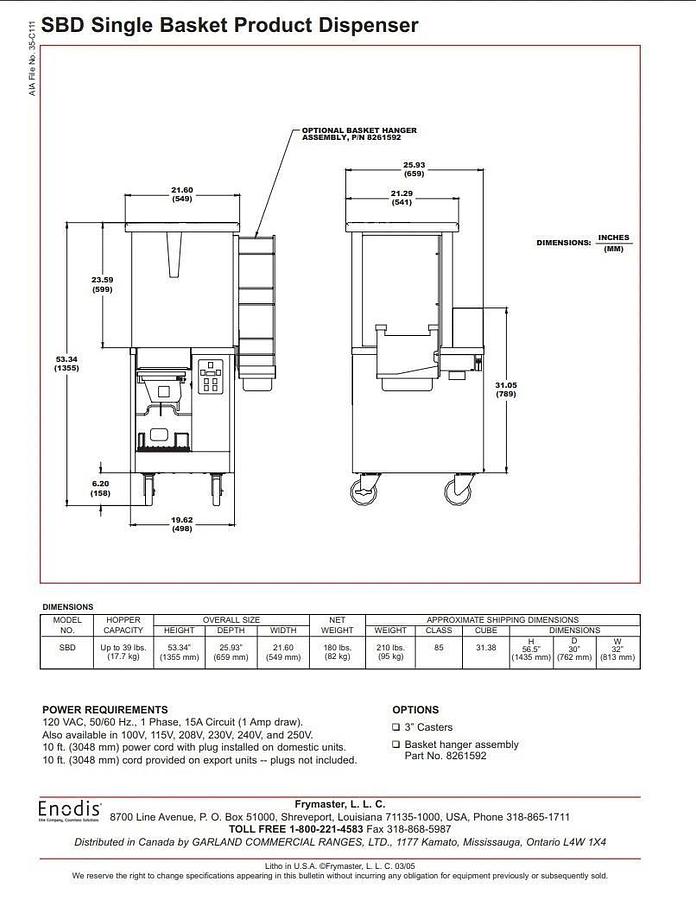

Dimensions and weight

·         Height: 53.34 inches (1355 mm)

·         Width: 21.60 inches (549 mm)

·         Depth: 25.93 inches (659 mm)

·         Net weight: 180 lbs (82 kg)

·         Construction: Stainless steel cabinet with 6-inch casters, including locking mechanisms on the front casters.

Capacity and dispensing

·         Hopper capacity: The insulated hopper can hold up to 39 lbs (17.7 kg) of frozen french fries.

·         Dispensing function: The system automatically dispenses a batch of fries into a basket. A proximity switch releases the product when a basket is placed beneath the dispensing chute.

·         Batch weight: The system is factory-programmed to dispense batches of three standard sizes: 0.5 lbs, 1.0 lbs, or 1.5 lbs. These weights can be reprogrammed.

·         Visibility: A sight glass on the hopper allows operators to monitor the fry level.

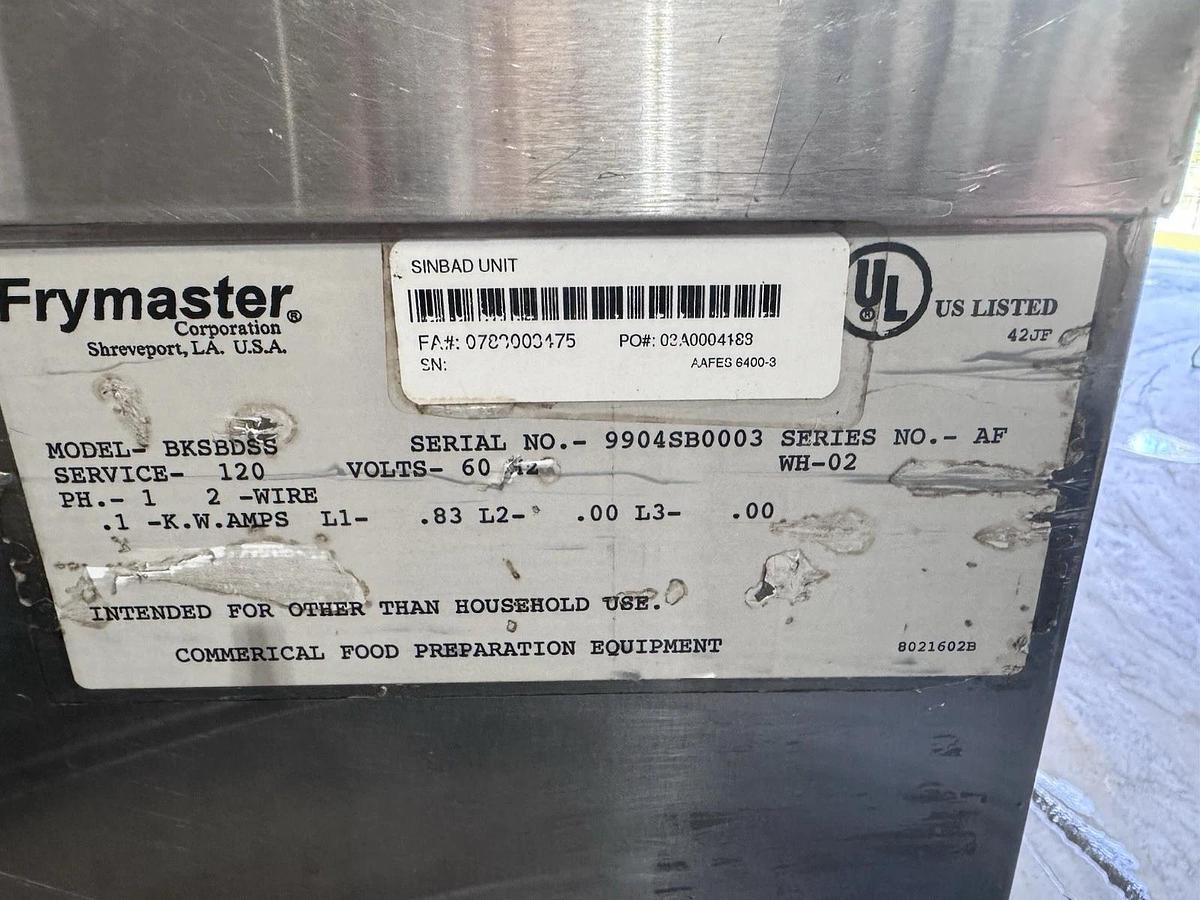

Electrical requirements

·         Power: 120 VAC, 50/60 Hz, 1 Phase

·         Current draw: 1 Amp

·         Cord: A 10-foot power cord is included on domestic units.

·         Voltage options: Also available in 100V, 115V, 208V, 230V, 240V, and 250V configurations.

Additional features

·         Operator interface: The unit is controlled by a computer and operator panel for managing and programming dispensing options.

·         Hopper clearing: A "Clear Hopper" function allows the operator to empty the entire hopper contents via a motorized door.
