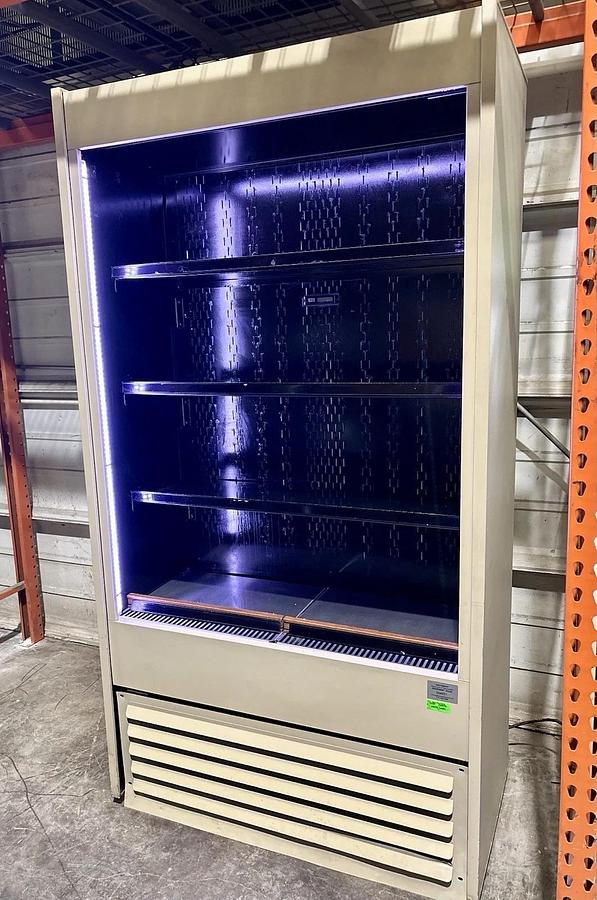

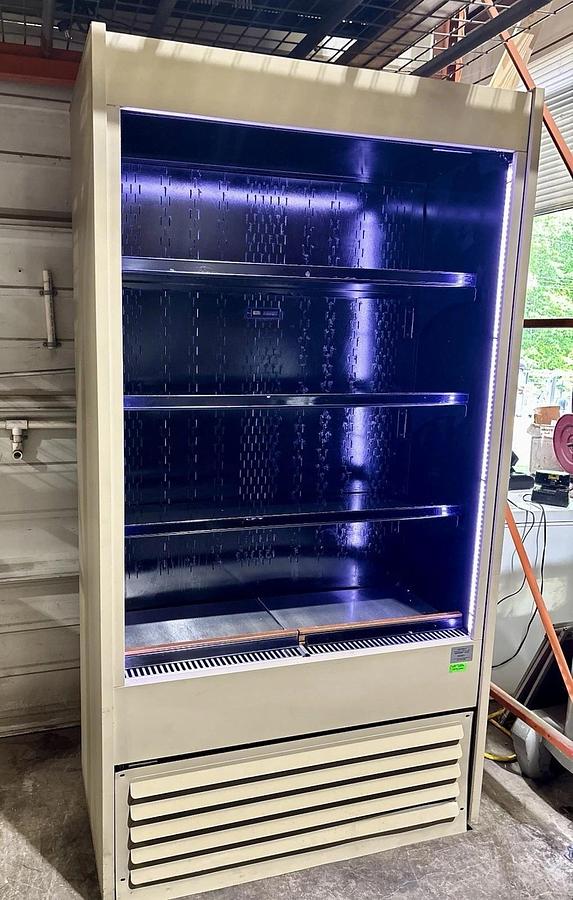

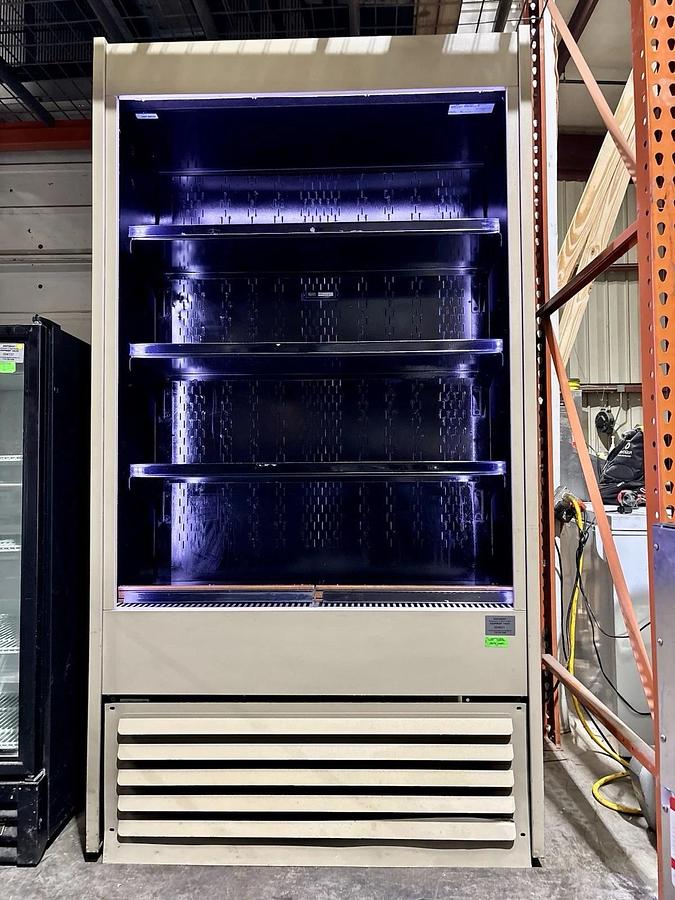

Structural Concepts B427WN 44 3/4" Allure® Vertical Open Air Cooler w/ (4) Level

Structural Concepts B427WN 44 3/4" Allure® Vertical Open Air Cooler w/ (4) Levels, 110-120v

Ideal for supermarkets, convenience stores, and cafes looking to promote grab-and-go salads, sandwiches, and drinks that are accessible to customers.

Structural Concepts B427WN Description

The Structural Concepts B427WN Allure® vertical open-air cooler offers a self-service design with a 44 3⁄4-inch-wide frame and three solid shelves. Designed for efficient vertical merchandising, it accommodates up to 208 bottles and maintains an average product temperature of 40 degrees Fahrenheit or lower using Breeze self-contained refrigeration. This one-section cooler uses environmentally friendly R290 hydrocarbon refrigerant and is equipped with a powder-coated Silversan black exterior.

To enhance product visibility, the Structural Concepts B427WN vertical open-air cooler includes LED top lighting and black 1-inch price tag molding across the shelving and deck. The black powder-coated interior is supported by an e-coated evaporator coil and a full set of powder-coated end panels. For installation flexibility, the base includes non-locking casters with levelers. This model supports merchandising in wine shops, grocery stores, and specialty retailers seeking performance and presentation in one freestanding unit.

Product Details

• Allure Series
• 1 section
• 18.08-cu.-ft. interior capacity
• 208-bottle capacity
• Powder-coated Silversan black exterior
• Black powder-coated interior finish
• Full end panels
• 3 solid, adjustable shelves
• LED top light
• 1-in. price tag molding
• Non-locking casters with levelers

Refrigeration System

• Self-contained Breeze refrigeration system
• Front-breathing design
• E-coated evaporator coil
• Condensate pan
• Magnetic air filter
• R290 hydrocarbon refrigerant
• Average product temperature: 40 degrees F or less

Dimensions & Utilities

• Shelf: 41 in. W x 19 in. D (approx.)
• Interior: 42 3⁄4 in. W x 20 in. D x 76 in. H
• Overall: 44 3⁄4 in. W x 24 3⁄8 in. D x 84 3⁄4 in. H
• 10.73 A, 977 W
• 110–120 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P or L5-15P plug

Structural Concepts B427WN Specifications

Spec Attribute

Spec Value

Manufacturer

Structural Concepts

Access

Self Service

Bottle Capacity

208

Color

Black

Compressor Location

Bottom

Compressor Type

Self Contained

Cubic Feet

18.08

Depth (in)

24.38

Design

Vertical

Height (in)

84.75

Hertz

60

Includes

Casters

NEMA

5-15P

NEMA

L5-15P

Number of Levels

4

Phase

1

Product

Open Air Merchandisers

Product Type

Commercial Refrigeration

Rating

Best

Refrigerant

R290 (Hydrocarbon)

Sections

1

Series

Allure®

Special Features

Black Interior

Special Features

Casters Included - Installed

Special Features

LED Lighting

Temperature

One Zone

Type

Freestanding

Voltage

110/120

Width (in)

Weight

44.75

750 lbs.
