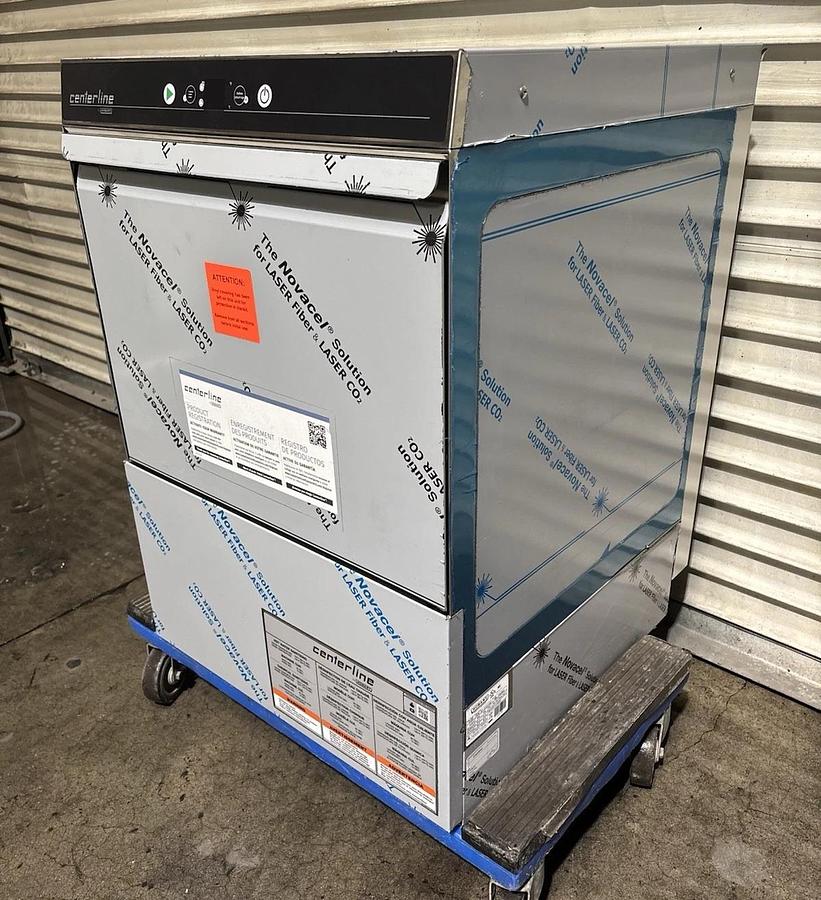

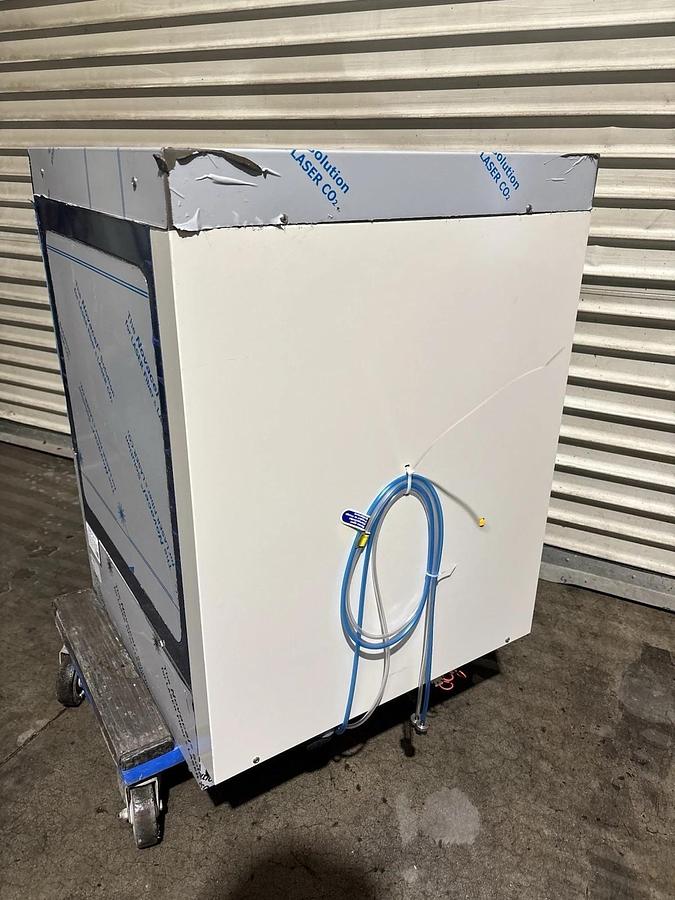

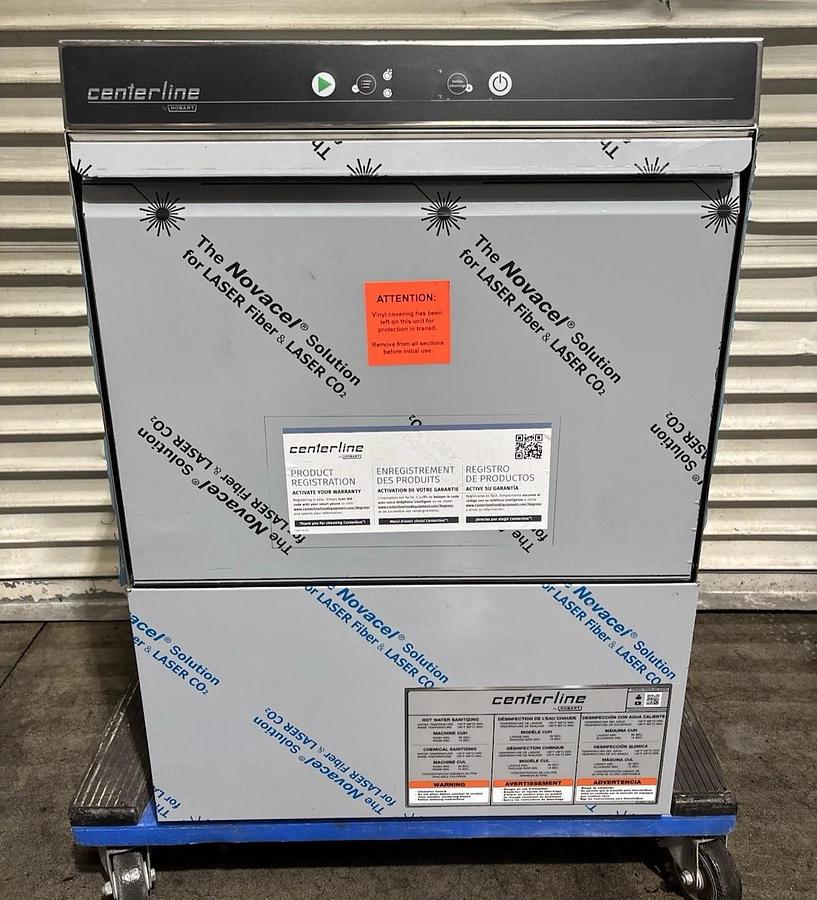

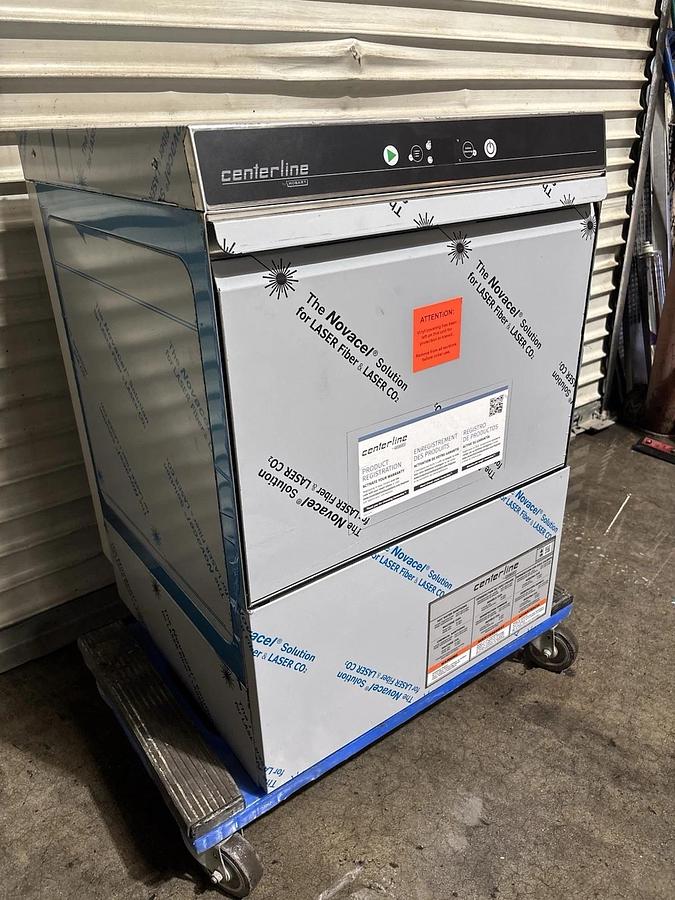

Hobart CUH-1 23" High Temp Undercounter Dishwasher with Booster Heater

Centerline Commercial CUH-1 HIGH TEMPERATURE Undercounter Dishwasher

Specifications

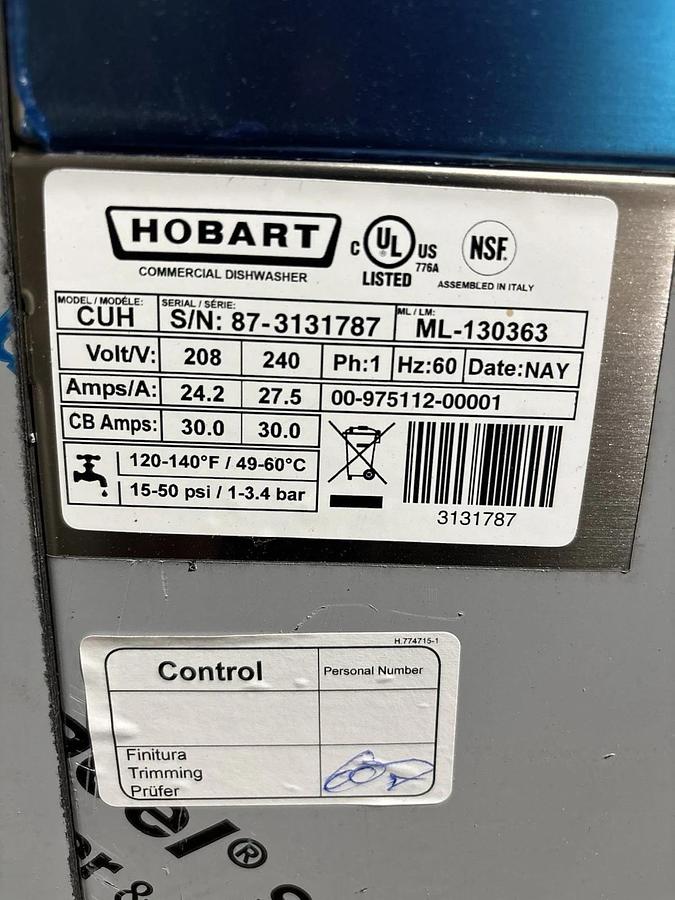

Centerline Dishwasher, undercounter, 22 11/16"W x 24"D x 32 5/16"H, high temperature sanitizing, (24) racks/hr, fresh water rinse, .84 gal/rack, delime notification and cycle, service diagnostics with error notifications, soft start, detergent & rinse aid pumps, 208-240v/60/1-ph, 24.2-27.5 amps, ships with (1) peg rack and (1) combo rack, cULus, NSF, ENERGY STAR®

Description:  Specified unit will be NSF rated, Centerline by Hobart high temperature undercounter dishwasher. Features soft start, two selectable cycles, one standard 2-minute cycle with optional extended cycle (factory set at 240 seconds); .84 gallons per rack, LED temperature and operator display, service diagnostics, detergent and rinse aid pumps. Constructed of stainless steel.

Features & Benefits

• 24 racks per hour
• .84 gallons of water per rack
• Hot water sanitizing
• Top-mounted user interface with digital temperature display
• 2-minute cycle with optional extended cycle
• 14.46" door opening
• Snap-in, revolving upper and lower anti-clogging wash & rinse arm; low-profile, single-arm design
• Sense-a-Temp™ ensures 180°F final rinse
• Integrated booster heater capable of 70°F rise
• Removable, 3-part stainless steel scrap screen
• Soft start
• Automatic pumped drain
• Automatic fill
• Service diagnostics with error notifications
• Delime notification and cycle
• Chemical pumps standard
• Electric tank heat

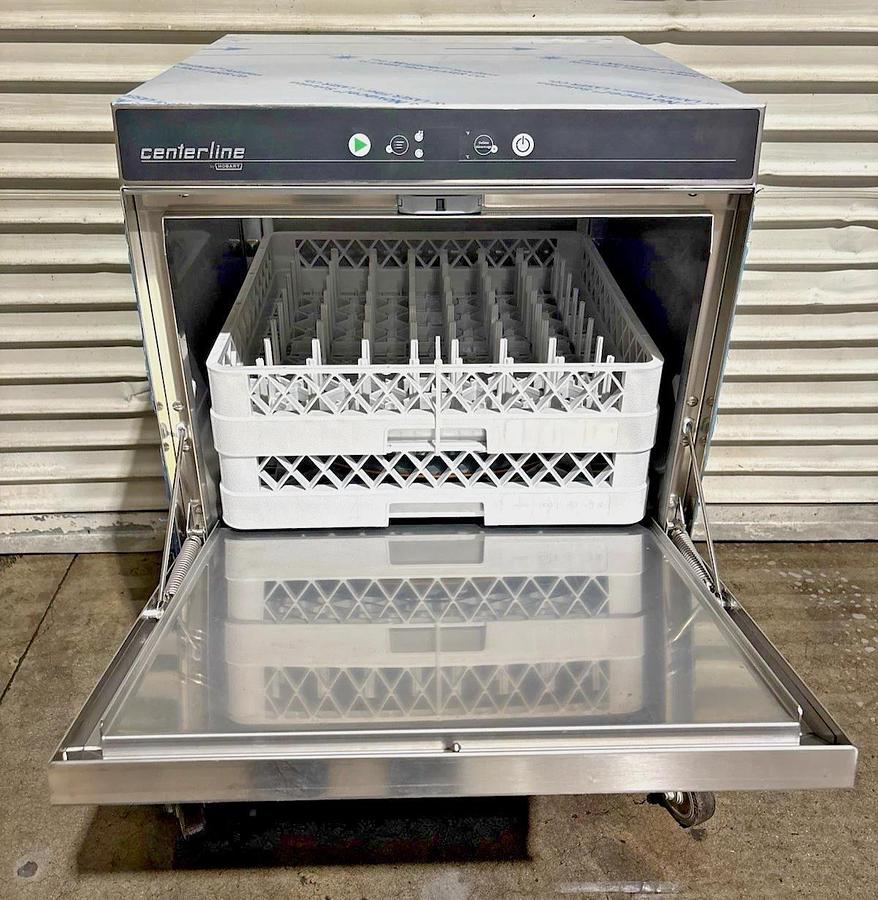

• Two dishracks – one peg and one combination type

Features

Manufacturer Centerline by Hobart

Model Number CUH-1

Weight 150 lbs

Width 22.69"

Depth 24"

Height 32.83"

Cabinet base fully enclosed

Certifications cULus, NSF

Construction stainless steel

Energy Efficiency ENERGY STAR®

Rack capacity approximately (24) racks/hour

Rack Size 20" x 20"

Tank Heat electric

Temperature high temp with booster with Sense-a-Temp™ booster heater. Ensures 180°F final rinse temperature for proper sanitization

Height Of Legs No Leg

Door Clearance 14"

Number Of Wash Cycle 1

Dishwasher Type Dishwasher Only

Water Consumption (Approx) 20 Gallons Per Hour

Phase 1

Voltage 208/240
